FEATURES
Working Pressure:15A~200A 10K
IS05211 Dire Mounting Pad
Blowout-Proof stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20°C~150°C
Suitable Medium:Water,Oil,Gas
FEATURES
Working Pressure:15A~200A 10K
IS05211 Dire Mounting Pad
Blowout-Proof stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20°C~150°C
Suitable Medium:Water,Oil,Gas

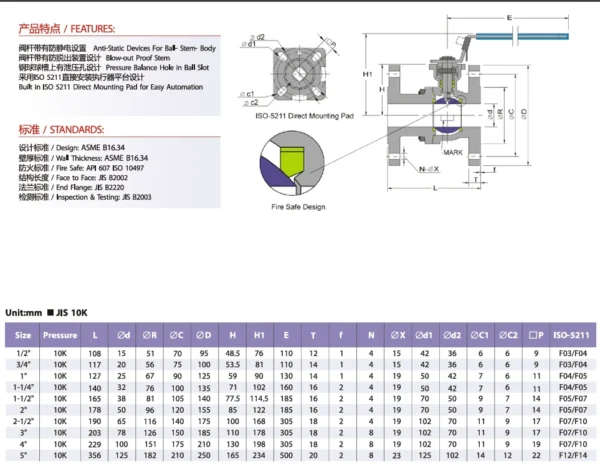

STANDARDS
Design Standard:ASME B16.34
End Flange:JIS B2220
Face to Face:JIS B2002
Inspection and testing:API598
| PART NAME | MATERIAL | |
|---|---|---|
| BOLT | A193-B8 | A193-B8 |
| NUT | A194-8 | A194-8 |
| CAP | SCS14 | SCS13 |
| SEAT | PTFE | PTFE |
| BALL | SS316 | SS304 |
| ANTI-STATIC DEVICE | SS316 | SS304 |
| JOINT GASKET | PTFE | PTFE |
| BODY | SCS14 | SCS13 |
| THRUST WASHER | PTFE | PTFE |
| O-RING | VITON | VITON |
| STEM PACKING | PTFE | PTFE |
| STEM | SS316 | SS304 |
| COMPRESSION RING | SS304 | SS304 |
| GLAND | SCS13 | SCS13 |
| LOCATING PIECE | SS304 | SS304 |
| BOLT | SS304 | SS304 |
| NUT | SS304 | SS304 |
| BUTTERFLY SPRING | SS304 | SS304 |
| WASHER | SS304 | SS304 |
| BOLT | SS304 | SS304 |
| NUT | SS304 | SS304 |
| HANDLE | SCS13 | SCS13 |
