FEATURES
Working Pressure:1/2″~10″ PN16
Full Port
IS05211 Direct Mounting Pad
Blowout-Proof stem
Design Anti-Static Device

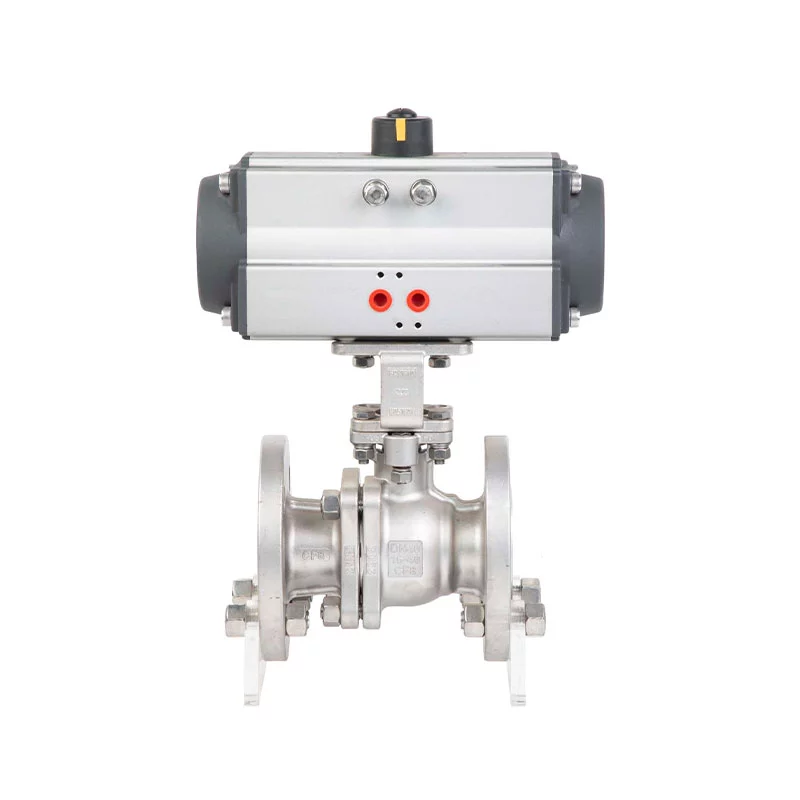

Locking Device Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20°C ~150°C
Suitable Medium:Water,Oil,Gas
FEATURES
Working Pressure:1/2″~10″ PN16
Full Port
IS05211 Direct Mounting Pad
Blowout-Proof stem
Design Anti-Static Device
Locking Device Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20°C ~150°C
Suitable Medium:Water,Oil,Gas

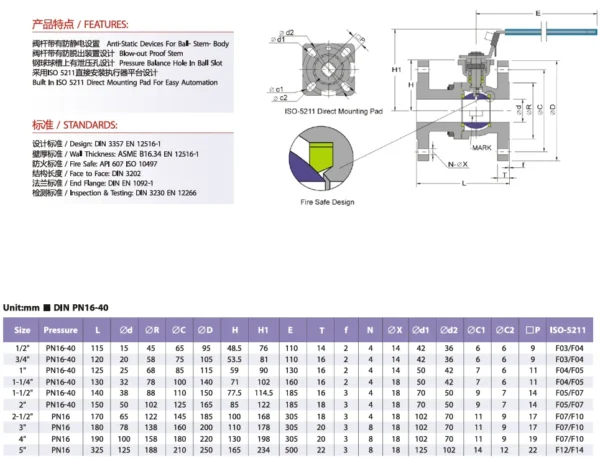

STANDARDS
Design Standard:ASME B16.34
End Flange:DIN2633
Face to Face: BS EN558-1
Inspection and testing:APl598/EN12266
| PART NAME | MATERIAL | ||
|---|---|---|---|
| BOLT | A193-B8 | A193-B8 | A193-B8 |
| NUT | A194-8 | A194-8 | A194-8 |
| CAP | CF8M | CF8 | WCB |
| JOINT GASKET | PTFE | PTFE | PTFE |
| SEAT | PTFE | PTFE | PTFE |
| BALL | SS316 | SS304 | SS304 |
| STEM | SS316 | SS304 | SS304 |
| BODY | CF8M | CF8 | WCN |
| THRUST WASHER | PTFE | PTFE | PTFE |
| ANTI-STATIC DEVICE | SS316 | SS304 | SS304 |
| BUTTERFLY SPRING | SS304 | SS304 | SS304 |
| ANTI LOOSING CAP | SS304 | SS304 | SS304 |
| HANDLE | CF8 | CF8 | CF8 |
| O-RING | VITON | VITON | VITON |
| STEM PACKING | PTFE | PTFE | PTFE |
| COMPRESSION RING | SS304 | SS304 | SS304 |
| NUT | SS304 | SS304 | SS304 |
| BOLT | SS304 | SS304 | SS304 |
| BOLT | SS304 | SS304 | SS304 |
| NUT | SS304 | SS304 | SS304 |
