FEATURES
Full Port
ISO5211 Direct Mounting Pad
Blow out-Proof Stem Design
Anti-Static Device
Operation: Pneumatic Actuator
Various Thread Standards Available
Investment Casting
Working Temperature:-20°C~150°C
Suitable Medium:Water,Oil,Gas
FEATURES
Full Port
ISO5211 Direct Mounting Pad
Blow out-Proof Stem Design
Anti-Static Device
Operation: Pneumatic Actuator
Various Thread Standards Available
Investment Casting
Working Temperature:-20°C~150°C
Suitable Medium:Water,Oil,Gas

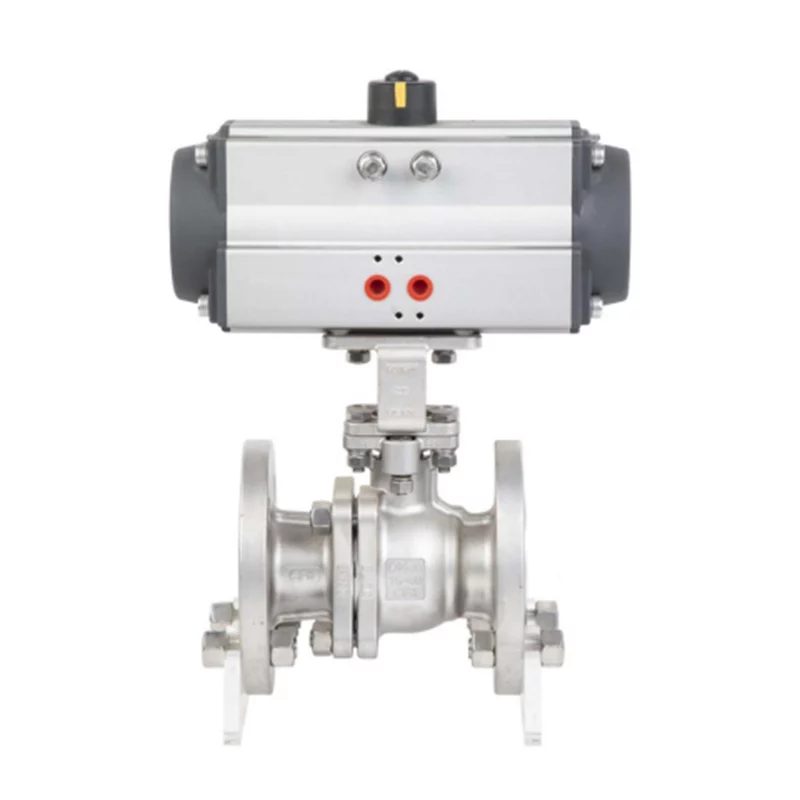

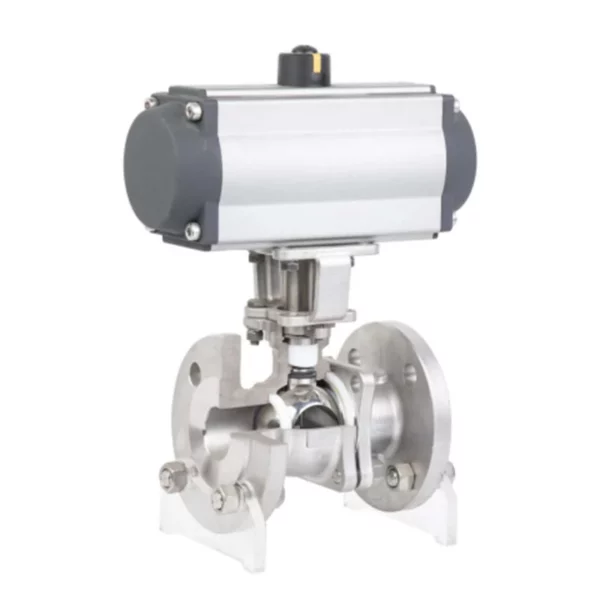

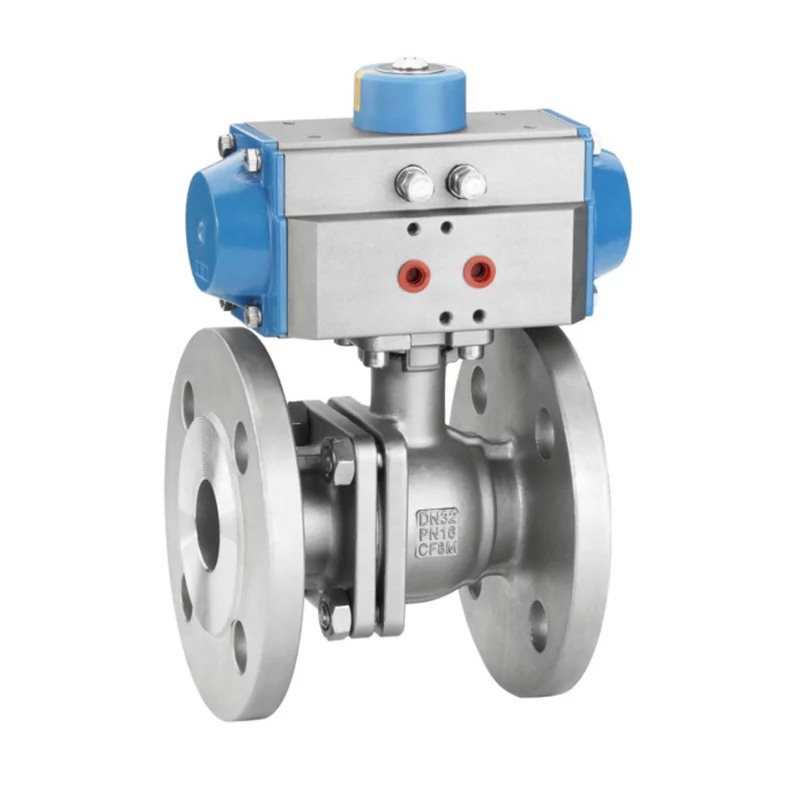

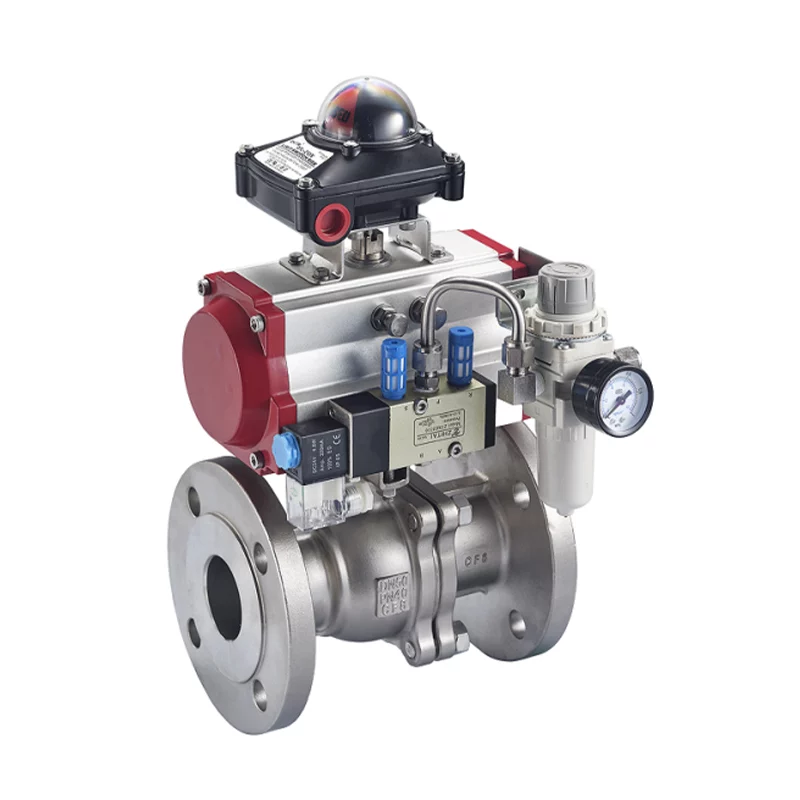

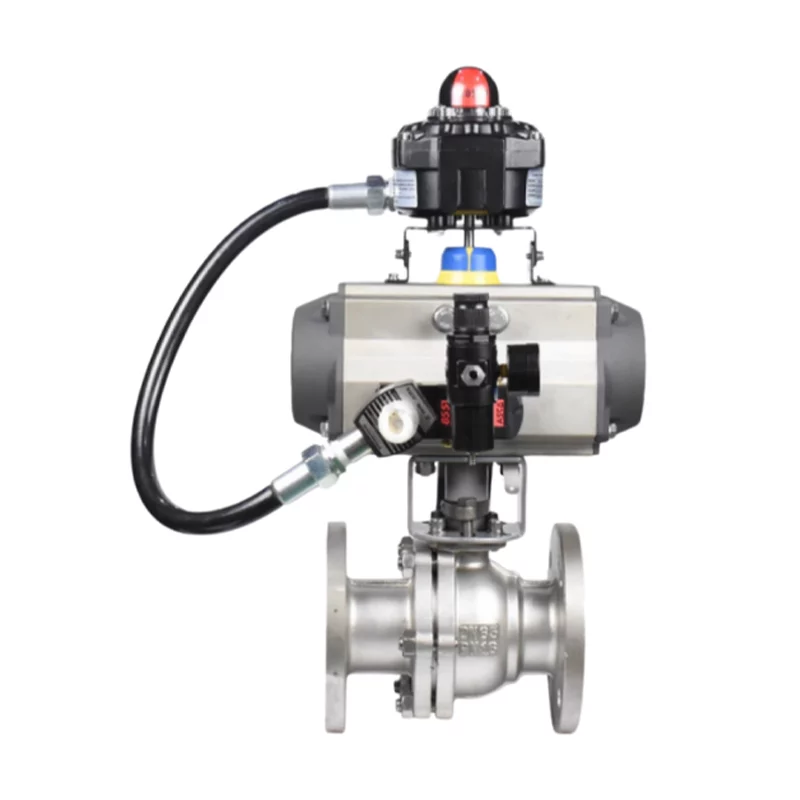

Flanged Pneumatic Actuated Ball Valve Flanged end
Pneumatic Actuated Ball Valve Flanged end
with flange connection. Quick open and close, fast-acting, less flowing resistance.
Features include compact design, easy operation and maintenance.
Well for water, acids and natural gas and other general media. Available in ANSI, JIS, DIN, GB standard.
COVT Valve as a pneumatic actuated ball valve supplier. We provide various actuated ball valves in all sizes, materials and actuator types for your choice to help your automation easier.
Consult us to get the best price!
Model
Benefits Of Pneumatic Flanged Ball Valves:
COVT Pneumatic Flanged Ball Valves provide you with flexible and reliable fluid solutions. Flanged ball valve has the advantages of easy installation, easy maintenance, full diameter and large flow. Can be customized to ANSI standard, JIS standard, GB standard or DIN standard according to your piping needs.
The advantages of pneumatic actuators are explosion-proof, safety, fast response and low cost. Furthermore, it can be used with pneumatic accessories to realize remote control and help you improve production efficiency.
Technical Parameters Of Flanged Pneumatic Actuated Ball Valve:
| Actuator Type | Spring Return / Double Acting | Size Range | DN15 to DN200 |
| Connection | Flanged (ANSI, JIS, DIN, GB) | Structure Type | Floating Ball Core |
| Medium | Air, water, steam, oil, gas, fuel, etc | Working Pressure | 1.0 / 1.6 / 2.5 / 4.0 / 6.4MPa(10 / 16 / 25 / 40 / 64 bar) |
| Body Material | Stainless Steel 304/316/316L | Temperature Of Media | -10 to 180℃(14℉ to 356℉) |
| Applications | Wastewater treatment, power plant, paper and pulp, packing industry,etc | Seal Material | PTFE / PPL |
