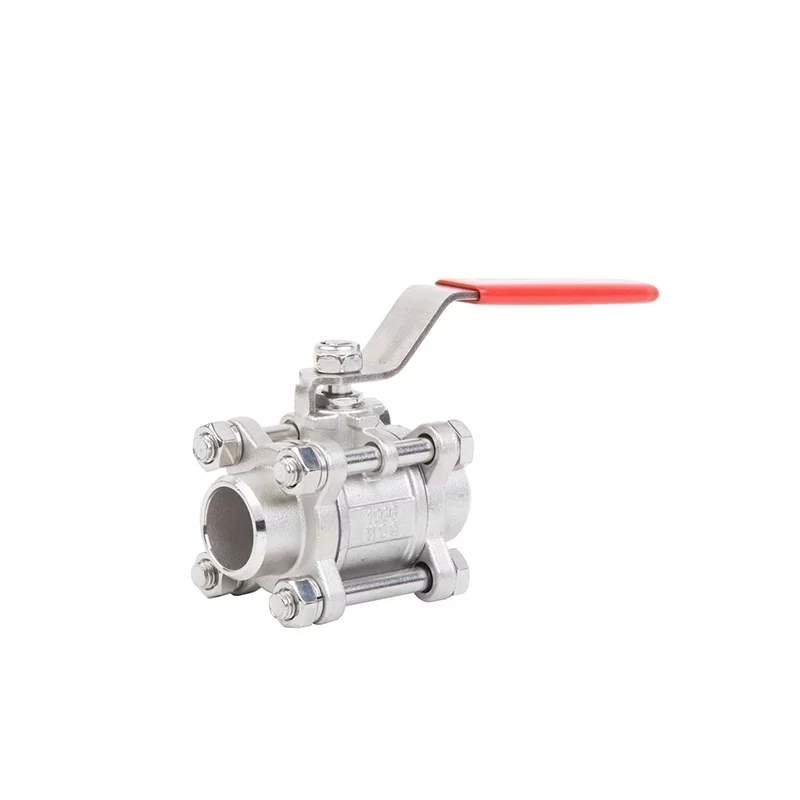

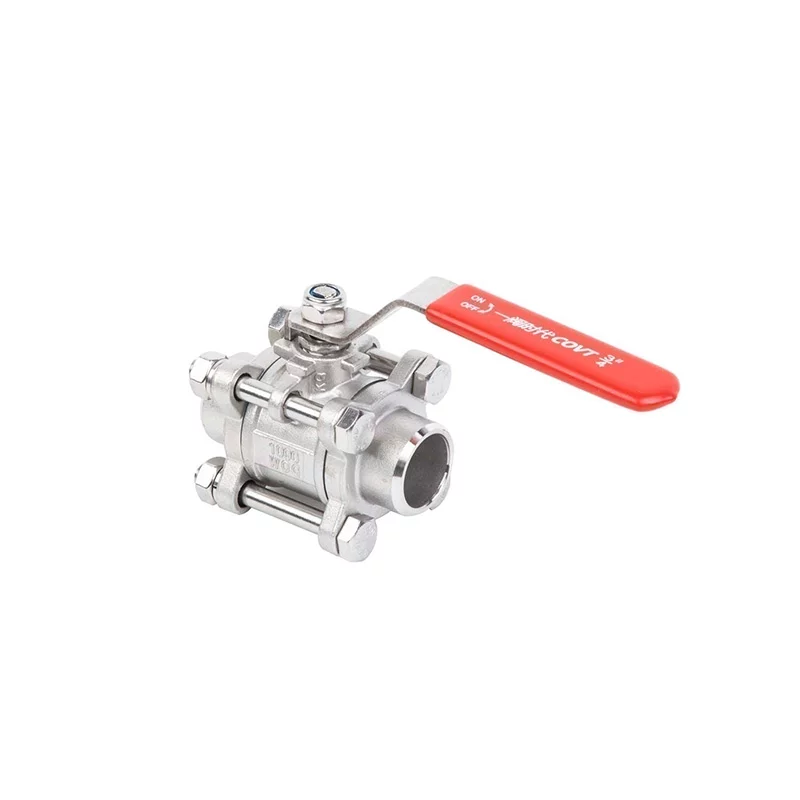

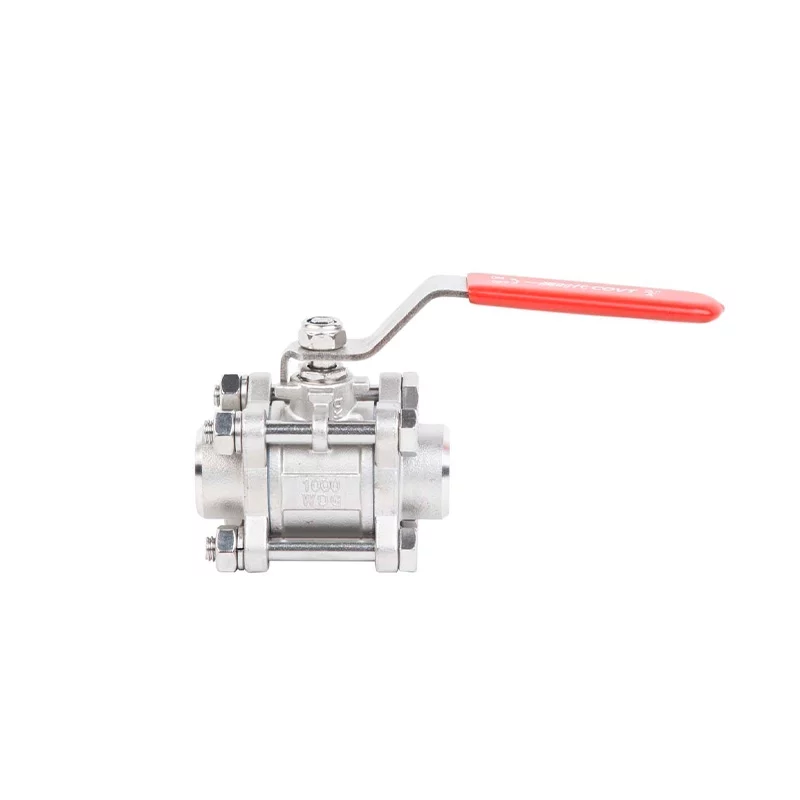

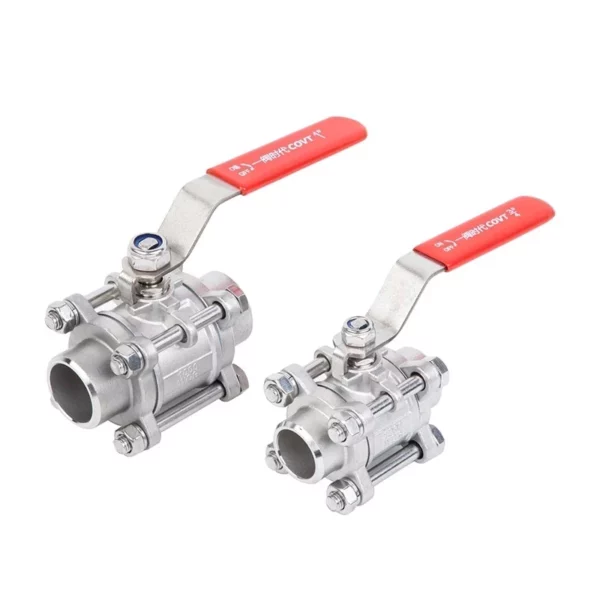

3PC Ball Valve 1000WOG Butt Weld End

FEATURES

Working Pressure:1/4″~4″1000WOG

Reduced Port

Blow out-Proof Stem Design

Locking Device

Available Investment Casting

Working Temperature:-20°C ~150°C

Suitable Medium:Water,Oil,Gas

STANDARDS

Design Standard:ASME B16.34Threaded Ends:ANSIB.20.1(NPT):BS21;DIN2999/259;1S0228/1;IS07/1

Inspection and testing:API598/MSS SP-110/EN 12266

3PC Ball Valve 1000WOG Butt Weld End

3-piece design ball valve (3PC Ball Valve) which could easy to disassemble and clean.

4-Long service life & cost-effective. Suitable for water, oil, air, steam, etc.

Manufacturing ball valve in 3-piece design/flanged/tri-clamp/welding for your projects.

Technical Parameters:

• Size Range: DN15-DN100 (1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″)
• Material: Stainless Steel 304 or Stainless Steel 316
• Pressure: 10bar, 16bar, 25bar, 40bar, 64bar

              (145psi, 232psi, 362psi, 580psi, 928psi)

• Material: Stainless Steel
• Pressure: 1000OWOG (PN64)
• Temperature: -29 to 180℃
• Connection: Female Thread （BSP/BSPT/ISO228/NPT）
• Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc

Features Of 3-Piece Ball Valve:

• 3-piece ball valve design features of easy to repair and long lifespan
• Threaded type 3-piece ball valves are available in G and NPT threaded
• Stainless steel 304 or 316 material for your choice
• ISO5211 mounting plate for electric actuator and pneumatic actuator
• Also available in flanged type, tri-clamp type and welded type

Material List:
