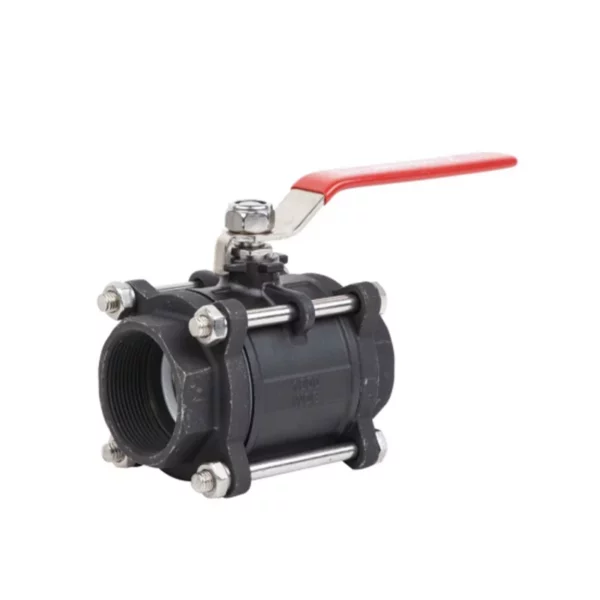

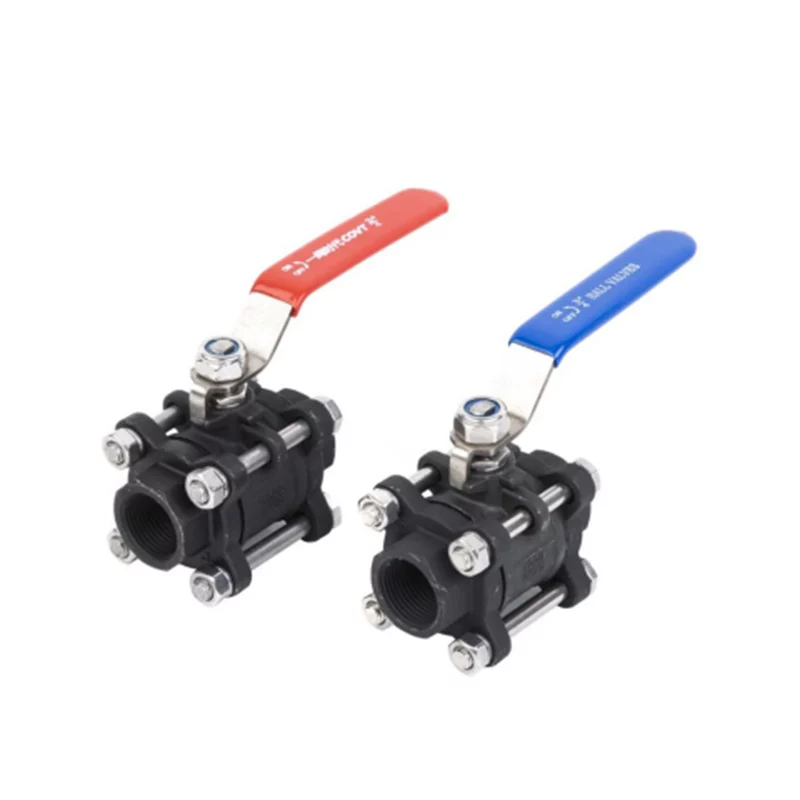

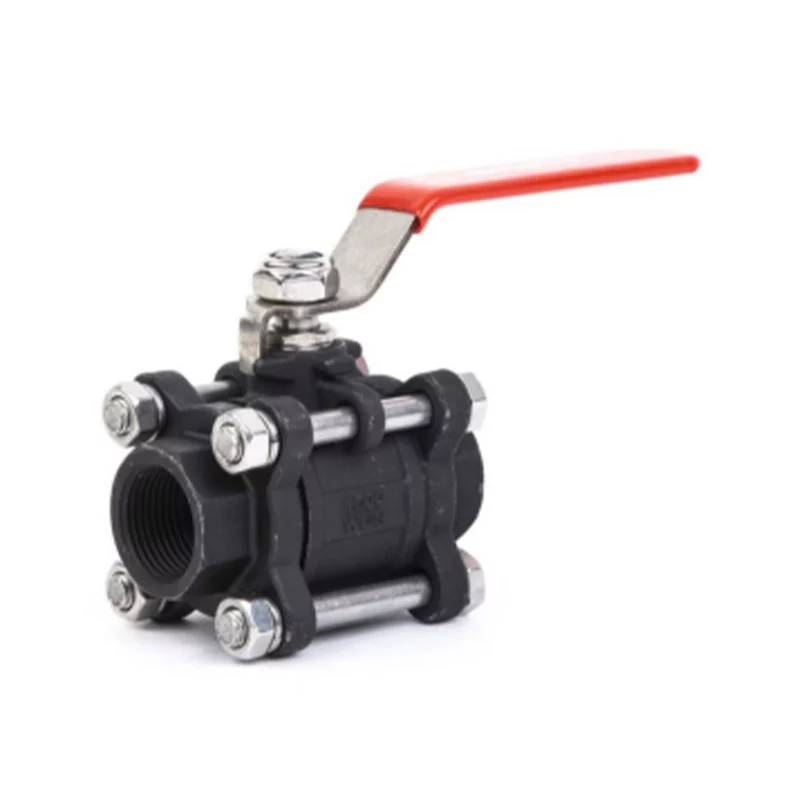

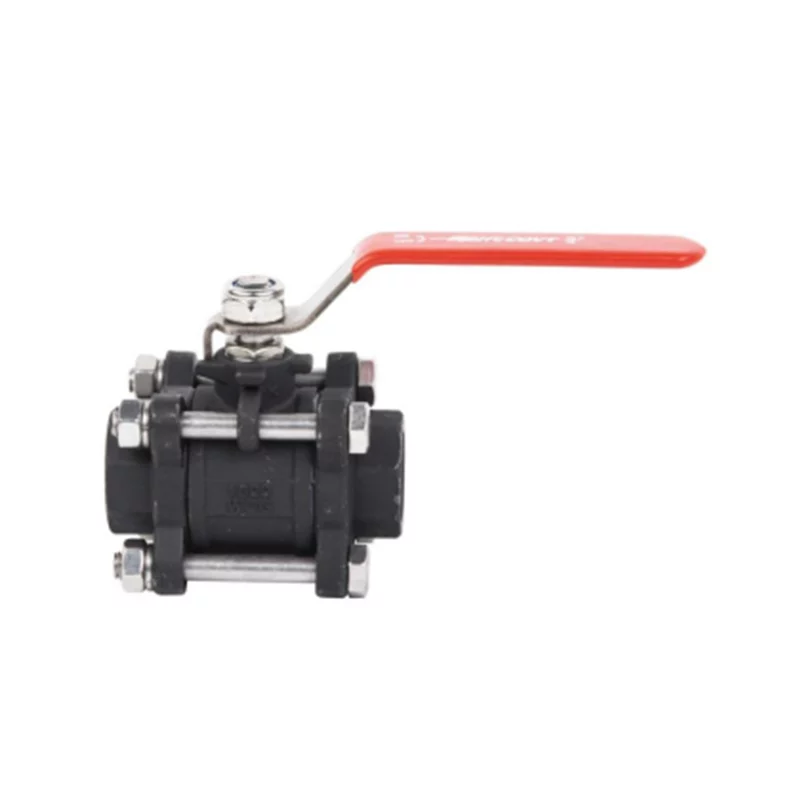

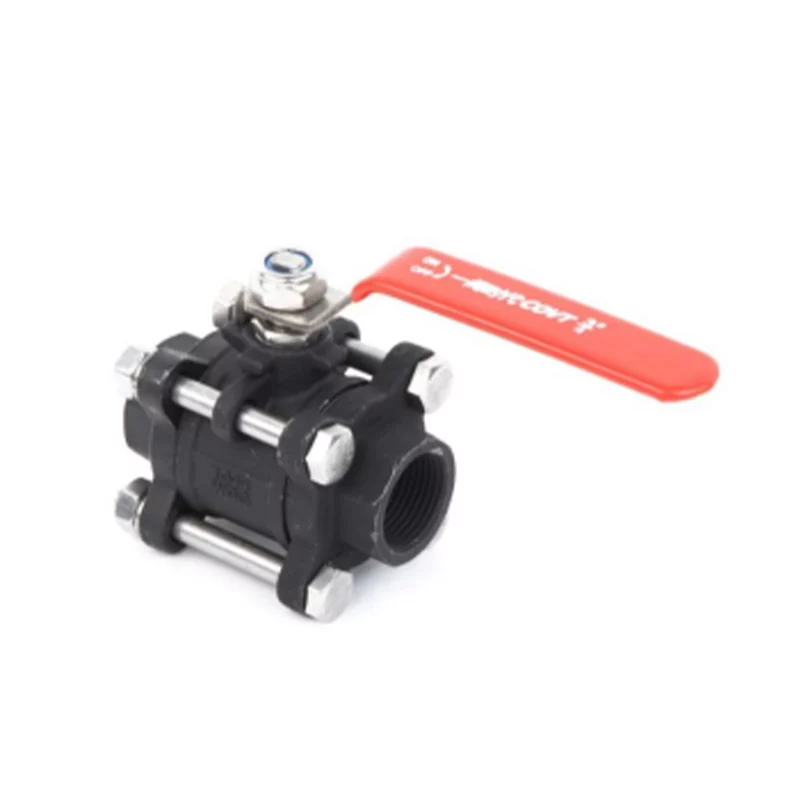

FEATURES
Working Pressure:1/4″~4″1000WOG
Reduced Port
Blow out-Proof Stem Design
Working Temperature:-20°C ~150°C
Suitable Medium:Water,Oil,Gas
FEATURES
Working Pressure:1/4″~4″1000WOG
Reduced Port
Blow out-Proof Stem Design
Working Temperature:-20°C ~150°C
Suitable Medium:Water,Oil,Gas
STANDARDS
Design Standard:ASME B16.34
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;1S0228/1;ISO7/1
Inspection and testing:API598/MSS SP-110/EN 12266
| PART NAME | MATERIAL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| BODY | CF8M | CF8 | WCB | ||||||
| JOINT GASKET | PTFE | PTFE | PTFE | ||||||
| CAP | CF8M | CF8 | WCB | ||||||
| BALL | SS316 | SS304 | SS304 | ||||||
| STEM | SS316 | SS304 | SS304 | ||||||
| THRUST WASHER | PTFE | PTFE | PTFE | ||||||
| STEM PACKING | PTFE | PTFE | PTFE | ||||||
| GLAND BUSH | SS304 | SS304 | SS304 | ||||||
| HANDLE | SS201 | SS201 | SS201 | ||||||
| NUT | SS304 | SS304 | SS304 | ||||||
| LOCK | SS201 | SS201 | SS210 | ||||||
| HANDLE COVER | PVC | PVC | PVC | ||||||
| BOLT | SS304 | SS304 | SS304 | ||||||
| NUT | SS304 | SS304 | SS304 | ||||||
| WASHER | SS304 | SS304 | SS304 | ||||||
| BOIT WASHER | SS304 | SS316 | |||||||
| HEX NUT | SS304 | SS316 | |||||||
| BOLT | SS304 | SS316 | |||||||
| BODY | CF8M | CF8 | WCB | ||||||
| SEAT | PTFE | ||||||||
| BALL | SS304 | SS316 | |||||||
| STEM | SS304 | SS316 | |||||||
| THRUST WASHER | PTFE | ||||||||
| PACKING | PTFE | ||||||||
| GLAND | SS304 | ||||||||
| HANDLE | SS304 | ||||||||
| SPRING WASHER | SS304 | ||||||||
| STEM NUT | SS304 | ||||||||
| PLASTIC COVER | PLASTIC | ||||||||
