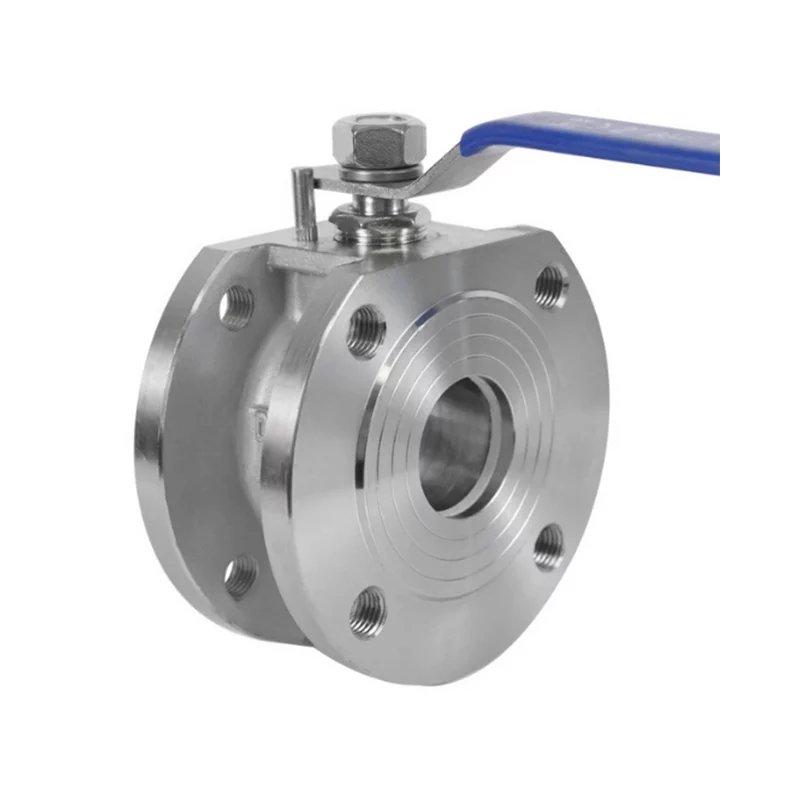

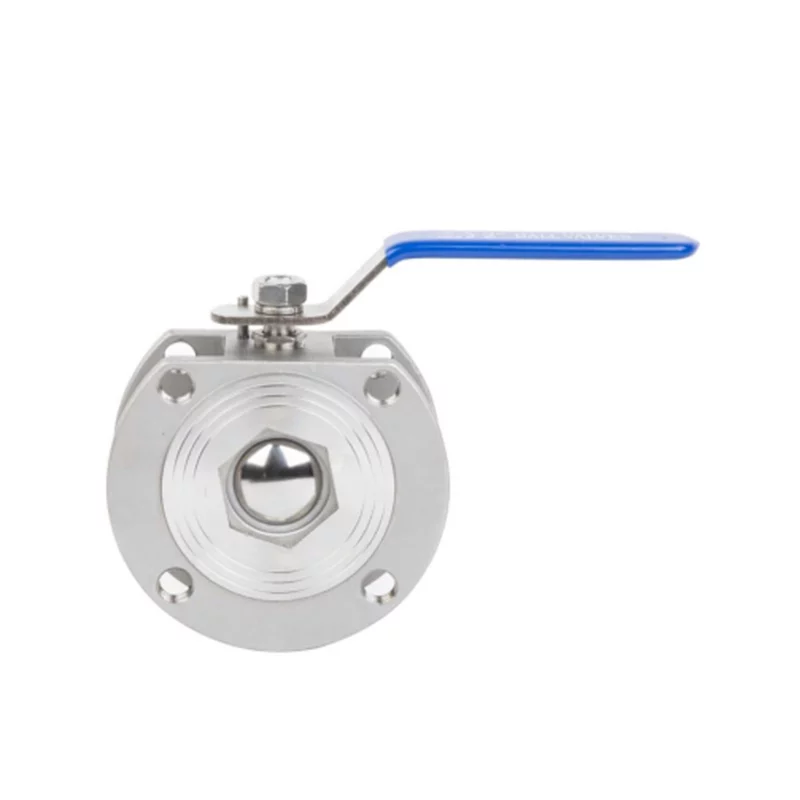

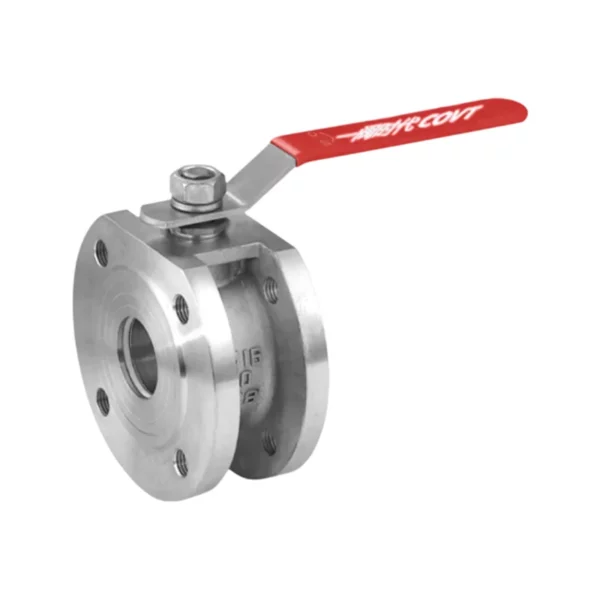

Wafer Ball Valve PN16 with lSO Direct Mounting Pad

Size: 3/8″~4″
Working Pressure:1000WOG
Working Temperature:-20ºC~180ºC
Blowout-Proof Stem Design

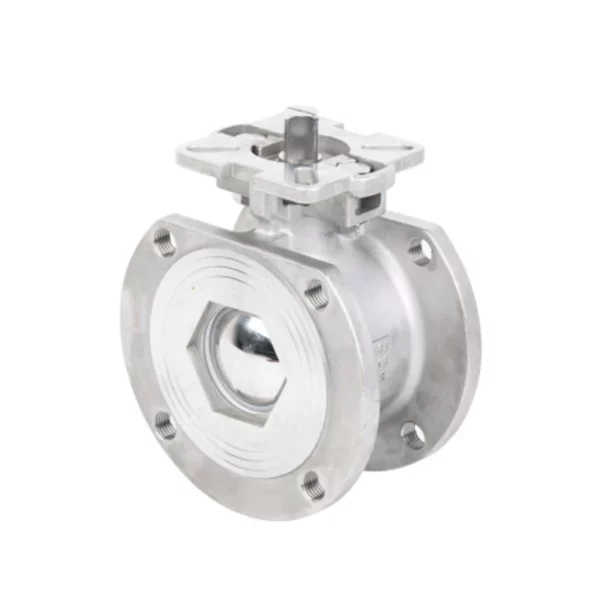

ISO5211 Direct Mounting Pad
Locking Device
Suitable Medium:Water,Oil,Gas
Investment Casting

Design Standard: ASME B16.34

Various Thread Standards Available: BSPT/ NPT/ BSP / G

Inspection and testing:API598/MSS SP-110/EN 12266

Features Of Flange Ball Valve

• Offering solution for the applications which need flange connection
• Large size range for choice up to 4”
• Floating ball valve design
• Available in ANSI, DIN standard
• Available in stainless steel and WCB material
• Easy to install and easy to repair
• ISO5211 mounting for electric actuator and pneumatic actuator

Technical Parameters:

• • Size Range: DN15-DN1000 (1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″,3″,4″)
  • Material: Stainless Steel 304 or Stainless Steel 316
  • Pressure: PN16

• Temperature: -10~180℃
• Suitable Medium: Water, Oil, Gas, Air, etc
• Connection: Flange Connection
• Connection Standard: ANSI, DIN

Material List:
