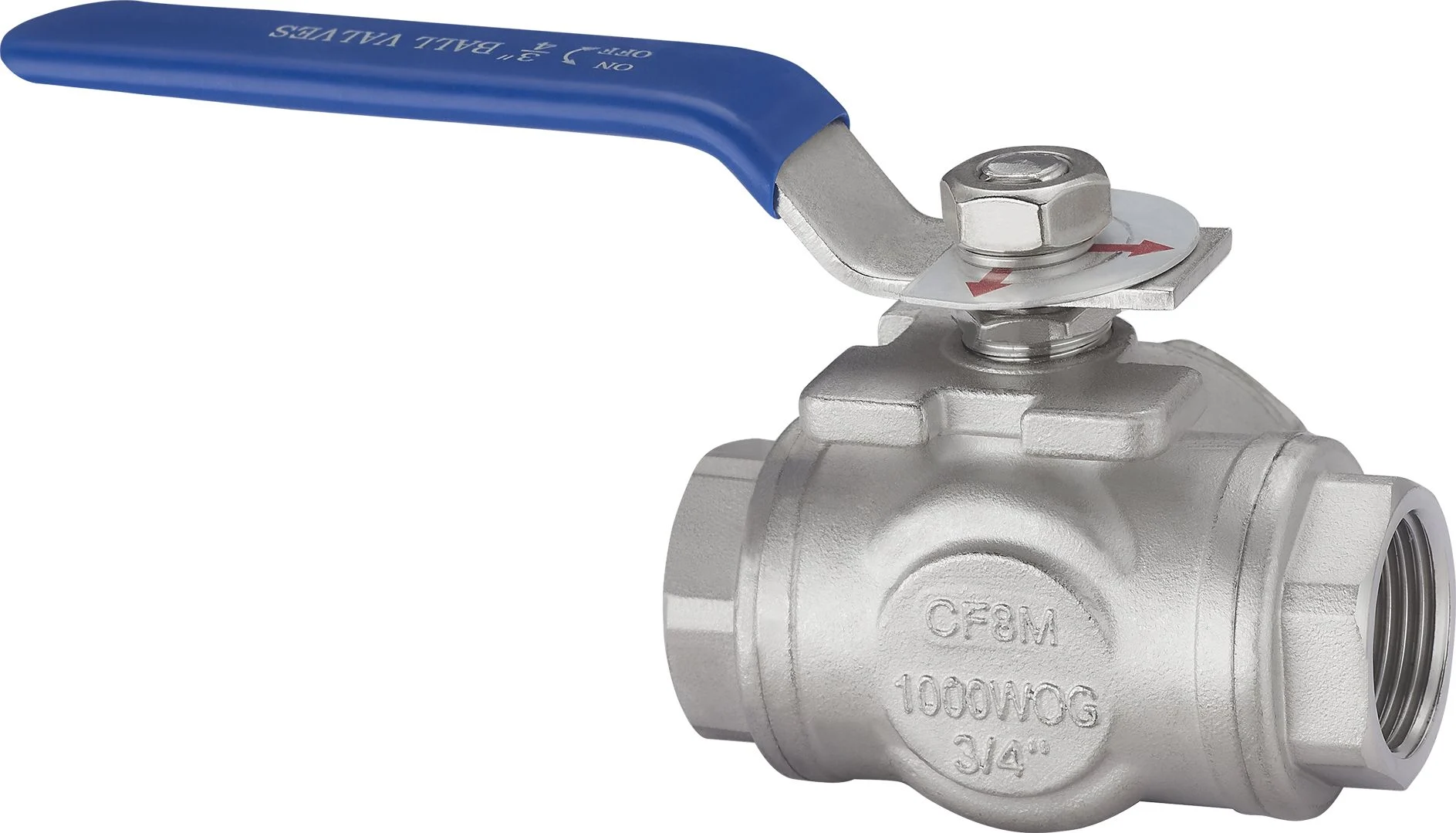

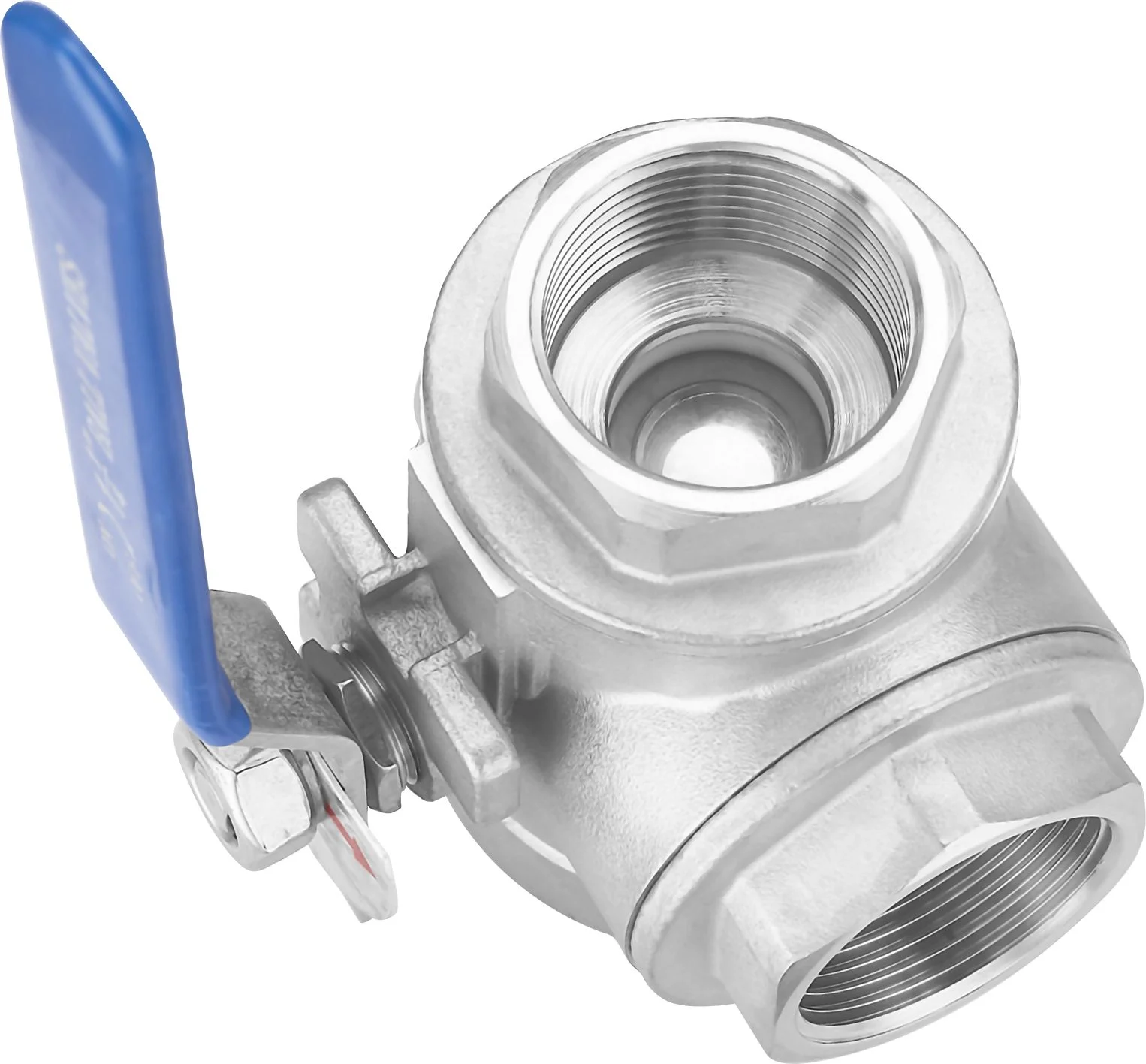

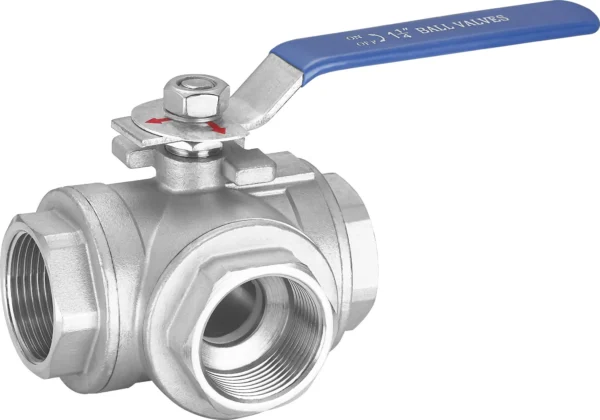

Stainless Steel 3-Way Ball Valve 1000WOG

Category: Globe Valve

Features Of 3-Way Threaded Ball Valve:

Available in T port and L port for your applications
Excellent control and diverter performance
Lockable in available
ISO5211 mounting plate for electric actuator and pneumatic actuator

Technical Parameters:

Size Range: DN8 to 50
Material: Stainless Steel
Pressure: PN10/16
Temperature: -29 to 180℃
Connection: Female Thread
Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc

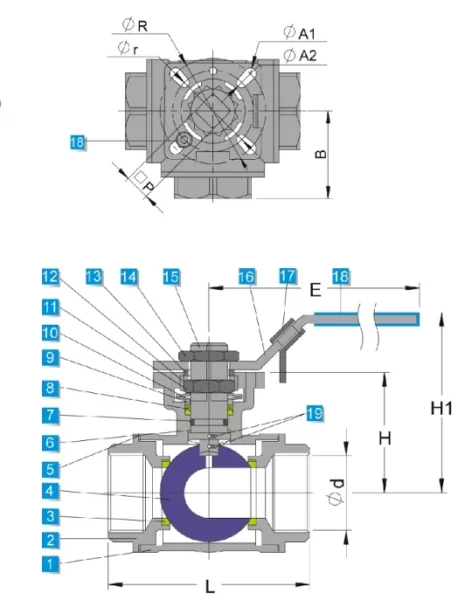

Material List:

No.	Parts	Material
1	Valve Body	CF8, CF8M,WCB
2	Nut	SUS304
3	Cap	CF8, CF8M,WCB
4	Ball	SS304,SS316
5	Seat	PTFE/RPTFE/CPTFE
6	Trust Washer	PTFE
7	Cap Gasket	PTFE
8	Spring Washer	SUS304
9	Nut	SUS304
10	Stem	SS304,SS316
11	Locking Device	SS201
12	Handle	SS201, SS304
13	Handle sleeve	Plastic
14	Bolt	SS304
