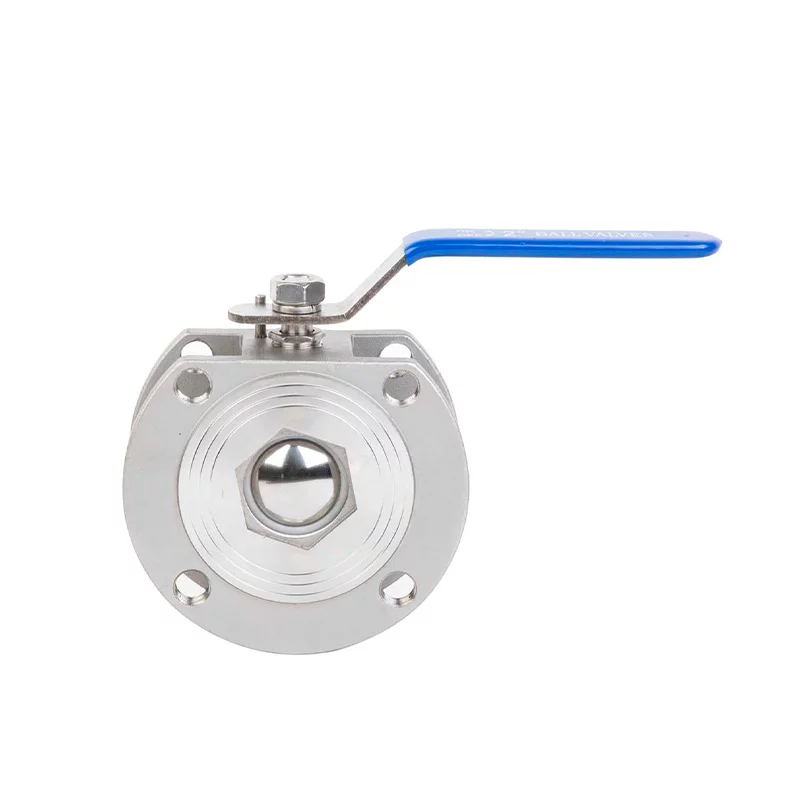

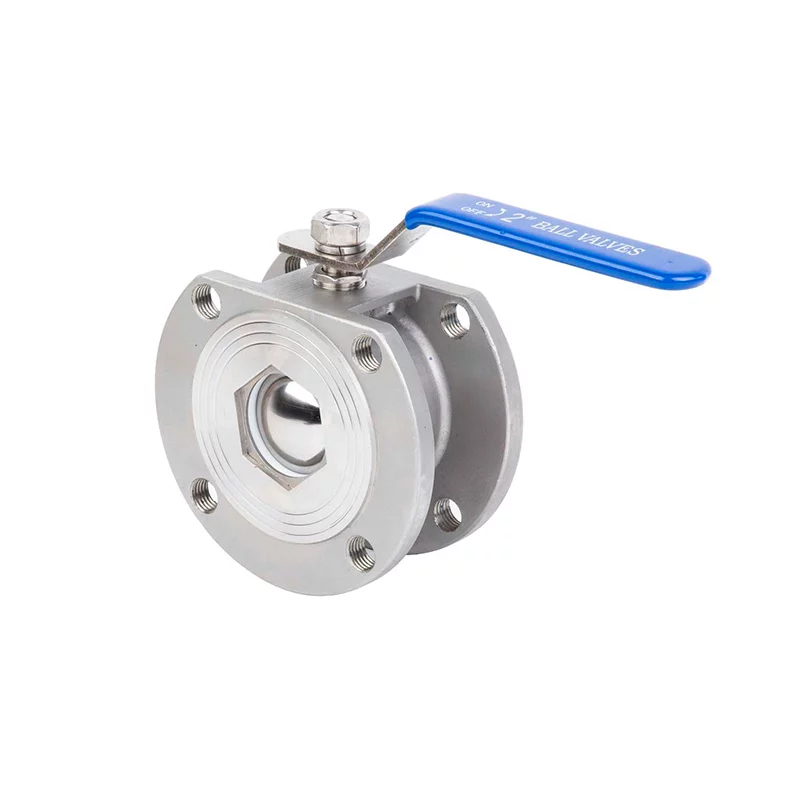

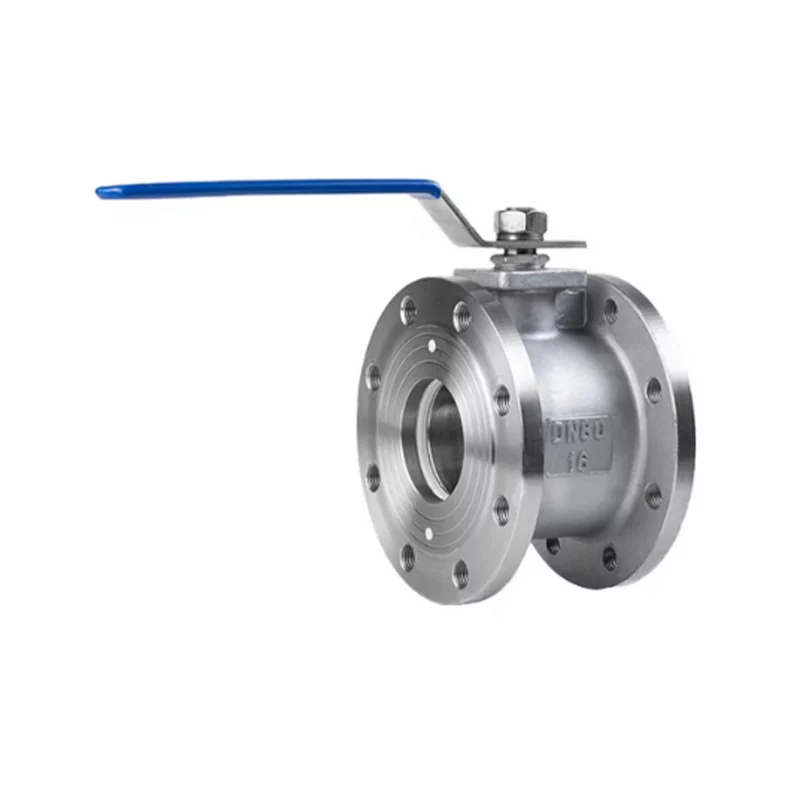

Wafer Ball Valve PN16

FEATURES

Working Pressure:DN15~DN100 PN16

Full Port

IS05211 Direct Mounting Pad

Blowout-Proof stem Design

Anti-Static Device

Locking DeviceOperation:Manual Or Actuator

Investment casting

Working Temperature:-20°C~245°C

Suitable Medium:Water,Oil,Gas

STANDARDS

Design Standard:ASME B16.34

End Flange:DIN2633

Inspection and testing:AP1598/EN 12266

Features Of Flange Ball Valve:

• Offering solution for the applications which need flange connection
• Large size range for choice up to 4”
• Floating ball valve design
• Available in ANSI, DIN standard
• Available in stainless steel and WCB material
• Easy to install and easy to repair
• ISO5211 mounting for electric actuator and pneumatic actuator

Technical Parameters:

• Size Range: DN15-DN1000 (1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″)
• Material: Stainless Steel 304 or Stainless Steel 316
• Pressure: PN16

• Temperature: -10~180℃
• Suitable Medium: Water, Oil, Gas, Air, etc
• Connection: Flange Connection
• Connection Standard: ANSI, DIN

Material List:
