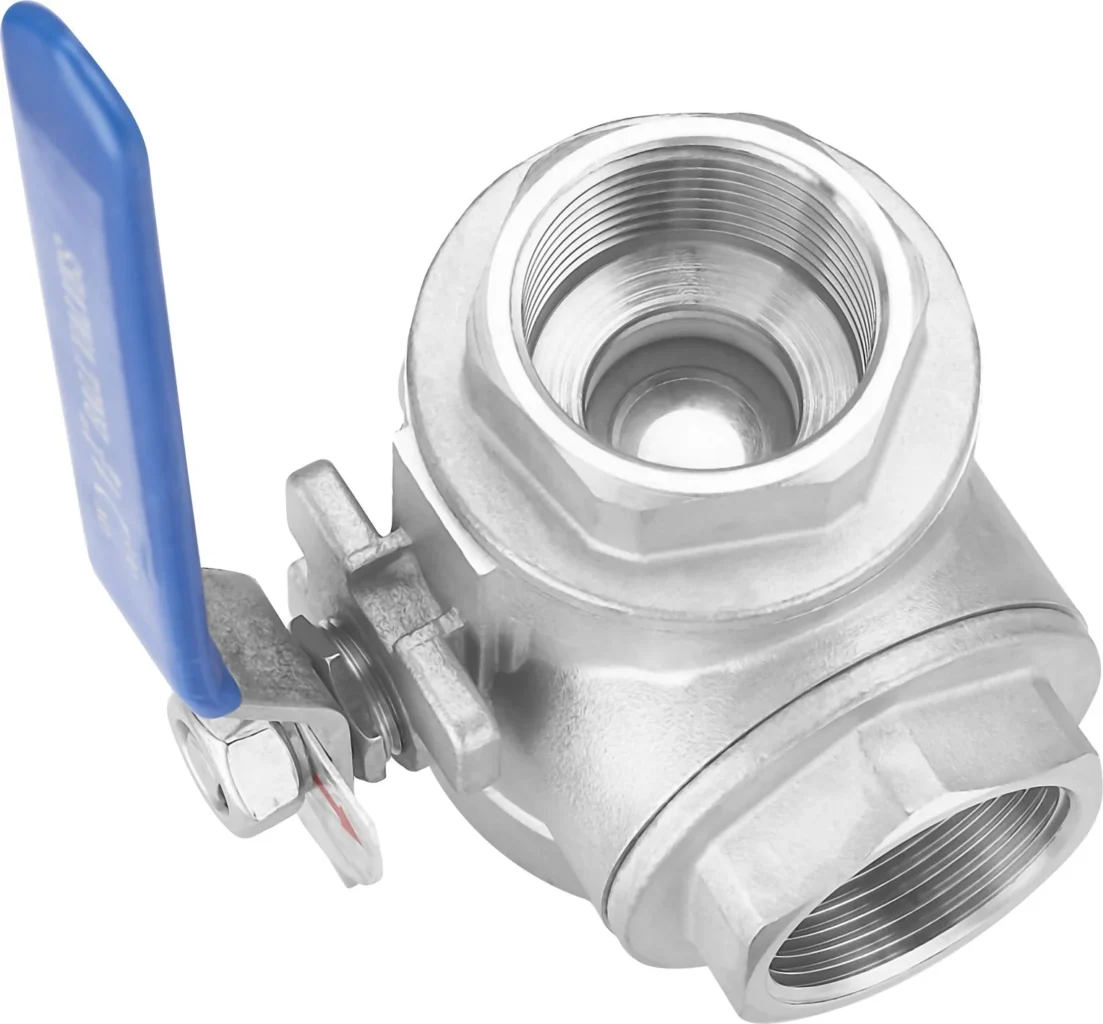

Features Of 3-Way Threaded Ball Valve:
- Available in T port and L port for your applications
- Excellent control and diverter performance
- Lockable in available
- ISO5211 mounting plate for electric actuator and pneumatic actuator
Technical Parameters:
- Size Range: DN8 to 50
- Material: Stainless Steel
- Pressure: PN10/16
- Temperature: -29 to 180℃
- Connection: Female Thread
- Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc
Material List:
| No. | Parts | Material |
| 1 | Valve Body | CF8, CF8M,WCB |
| 2 | Nut | SUS304 |
| 3 | Cap | CF8, CF8M,WCB |
| 4 | Ball | SS304,SS316 |
| 5 | Seat | PTFE/RPTFE/CPTFE |
| 6 | Trust Washer | PTFE |
| 7 | Cap Gasket | PTFE |
| 8 | Spring Washer | SUS304 |
| 9 | Nut | SUS304 |
| 10 | Stem | SS304,SS316 |
| 11 | Locking Device | SS201 |
| 12 | Handle | SS201, SS304 |
| 13 | Handle sleeve | Plastic |
| 14 | Bolt | SS304 |
